PET Blow Molding and Bottle Handling

Equipment detail — rotary stretch blow molding station.

Fully Automatic PET Rotary Blow Molding Machine

A fully automatic PET rotary blow molding machine heats preforms to suitable stretching temperatures, executes axial stretching, pre-blowing, and high-pressure blowing inside mold cavities, and continuously outputs formed bottle bodies after cooling and setting.

Container consistency, wall thickness distribution, and neck integrity govern downstream filling reliability, capping performance, and package pressure resistance. Maintaining precise thermal and pneumatic synchronization prevents bottle distortion, minimizes material waste, and ensures dependable packaging integrity across varied beverage production speeds.

Large-Capacity PET Blow Molding Machine

Large-capacity PET blow molding machines are engineered for the on-site forming of single-use large PET containers. The equipment builds upon standard stretch blow molding principles by incorporating extended heating lengths, enlarged mold cavity spaces, enhanced blowing capacities, prolonged cooling times, and specialized container support structures to manage large preforms.

Large-format containers require project-specific consideration of preform thermal load, stretch travel, mold cooling time and container-transfer support. The final heating and blowing settings are established from the confirmed preform and bottle design.

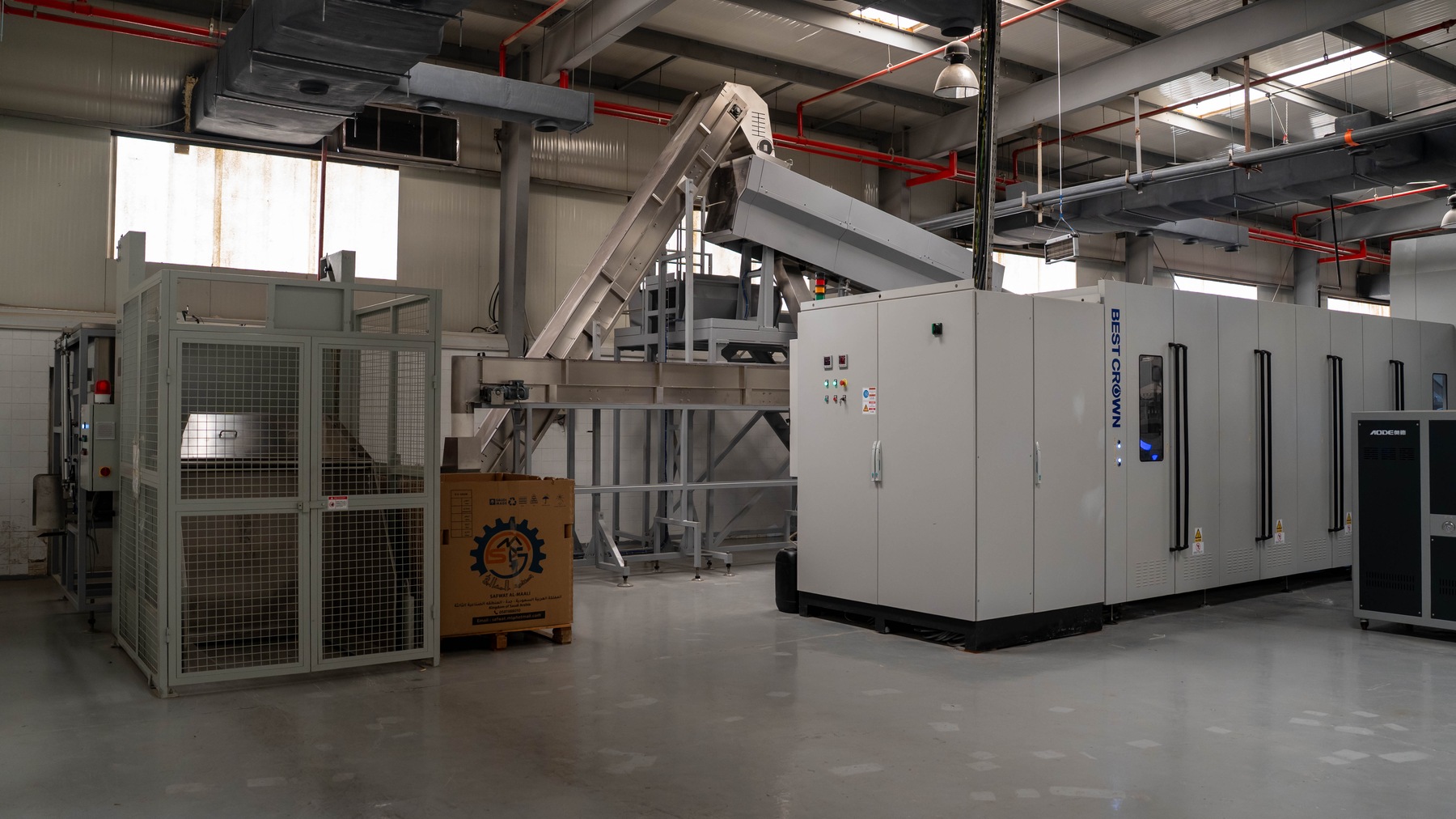

Project reference — automated preform feeding and blow molding line.

PET Preform Feeding System

PET preform feeding systems supply, orient and transfer preforms to the blow-molding machine inlet. The project configuration is defined from the preform specification, blow-molding connection, required throughput and plant layout.

Orderly orientation and stable transfer support the required blow-molding rhythm. Feeding, buffering and transfer conditions must be coordinated with the connected blow-molding system.

PET Air Conveying System for Empty Bottles

PET air conveying systems utilize neck-guidance rails to support lightweight empty bottles, using controlled directional airflow within enclosed ducts to transport containers continuously from standalone blow molding machines to downstream filling equipment.

Lightweight PET containers require stable pneumatic transfer to maintain high-speed delivery without applying mechanical gripping pressure to delicate container walls. Proper airflow management ensures consistent spacing and prevents surface damage during inter-machine transfer.

PET Bottle Flow Accumulation System

PET bottle flow accumulation systems establish controlled accumulation and release between rate-sensitive adjacent packaging machines, absorbing short-term stoppages and speed fluctuations across the production line. Effective accumulation capacity is created through optimized conveyor lengths, multi-lane expansion, speed differentials, and permissible accumulation states.

Unbuffered short-term equipment stoppages severely degrade overall line efficiency. Controlled accumulation isolates upstream and downstream interruptions, allowing continuous operation of core processing units and minimizing thermal or mechanical shock across the line.
