Cartoning Machine
The cartoning machine packages bottled or grouped products into corrugated cardboard boxes, or wraps flat blanks into cartons, utilizing wrap-around, side-load, or drop-on assembly methods.
Scope of Application
The application scope covers bottled beverage cartons, corrugated protection for products outside film packaging scope, and other grouped products verified via packaging samples.
Process Path

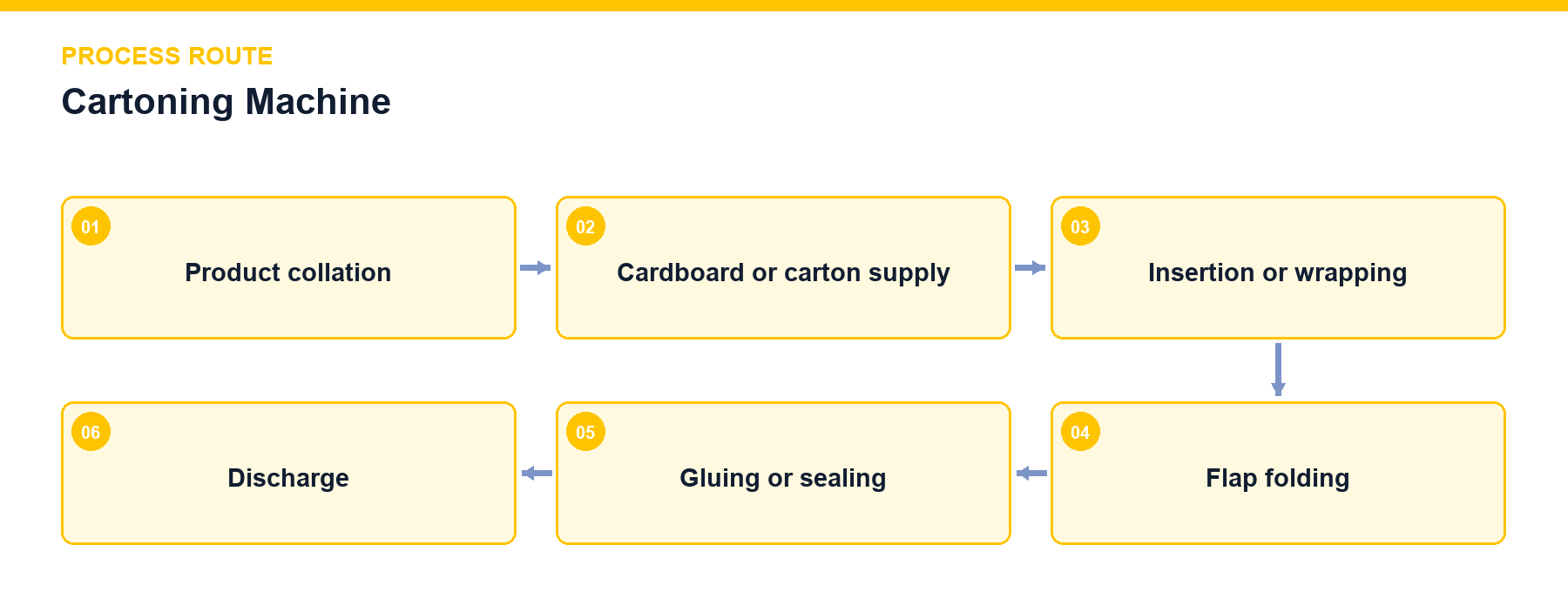

Process route — Cartoning Machine.
The process path flows from product collation through cardboard/carton supply, insertion or wrapping, flap folding, gluing or sealing, to carton discharge.
System Design and Operating Logic
Cartoning utilizes flat cardboard wrap-around, preformed carton side-load insertion, or vertical drop loading. All three routes share product collation and carton output logic but differ in carton structural requirements, product stability, infeed orientation, and motion timing. Wrap-around lines fold flat blanks around product groups and seal them with hot-melt glue, offering high material utilization and continuous operation. Side-load and drop-on lines utilize preformed cartons, suitable for packaging requiring robust box protection. Rated speeds are constrained by pack matrix, single-bottle weight, bottle rigidity, label surfaces, cardboard dimensional tolerances, open-time gluing windows, and downstream pallet layer patterns.
Key Design Details
| Design Object | Technical Description |
|---|---|
| Product Collation | Forming stable product groups per carton while halting insertion during missing or fallen bottle events. |
| Cardboard/Carton Supply | Single-blank separation, stock level, and orientation detection preventing double blanks or reverse feeding. |
| Insertion Routing | Wrap-around, side-load, or drop-on selection based on product strength, infeed direction, and box structure. |
| Folding and Guiding | Guide rails, pressure plates, and folding mechanisms adjusted to carton creasing and dimensions. |
| Hot-Melt Gluing | Nozzle positioning, temperature, open time, and compression time matched to cardboard surfaces. |
| Changeover | Repeatable reference adjustments for guides, grouping, carton magazines, folders, and glue gun positions. |
| Carton Discharge | Monitoring open, glued, and blocked carton states while establishing timing handoffs with palletizer feeds. |
Main Components and Functions
| Component | Function |
|---|---|
| Product Collation Units | Organize incoming products into required counts and orientations. |
| Cardboard or Carton Supply | Continuously feed single blanks or preformed boxes. |
| Cartoning and Wrapping Mechanisms | Push, insert, or wrap products with cardboard. |
| Folding and Gluing Units | Form carton structures and complete adhesive bonding. |
| Carton Discharge and Detection Units | Output packages while inspecting missing items, unsealed flaps, or gluing faults. |
Operation and Control
Operation and control encompass product group count and missing-bottle detection, cardboard/carton low-level sensing, insertion and wrapping motion interlocks, glue temperature and adhesive volume monitoring, and carton discharge jam interlocking.
Cleaning and Maintenance
Cleaning and maintenance require protecting product-contact guides and clamping parts from scratching bottles or labels, regularly cleaning paper dust and glue residue affecting sensors, guides, and folding mechanisms, executing safe pressure and temperature release before gluing unit maintenance, and verifying creasing, glue placement, and carton squareness using actual products and boxes after changeovers.
Engineering Interfaces
Engineering interfaces connect the product collation unit, cardboard/carton supply, hot-melt adhesive/sealing materials, carton discharge conveyor, and palletizer.
Project Definition Inputs
| Input Parameter | Description |
|---|---|
| Container & Matrix | Single-bottle dimensions, weight, and cartoning matrix per box. |
| Cardboard Specs | Cardboard or carton blueprints and corrugated specifications. |
| Speed & Sealing | Target carton speed, sealing method, and compressive strength requirements. |
Options
Optional configurations include flat cardboard wrap-around cartoning, side-load cartoning, drop-on cartoning, specialized collation and insertion for gift boxes or shaped containers, and missing-bottle, missing-carton, and glue status detection.
Project Reference
Project reference only — not a standard specification.
| Project Description | Configuration / Parameter | Use Boundary |
|---|---|---|
| General Project Equipment Range | Supports wrap-around, side-load, and drop-on configurations with integrated missing-bottle and glue-application monitoring | Project Equipment Range |
Frequently Asked Questions
Q: What are the primary structural differences between wrap-around and side-load cartoning?
A: Wrap-around cartoning folds flat corrugated blanks tightly around collated products, minimizing material waste and headspace, whereas side-load cartoning inserts products into preformed cartons.
Q: How is adhesive application quality controlled during high-speed cartoning?
A: Hot-melt gluing systems monitor temperature, pressure, and bead patterns to ensure proper adhesive open-time and bonding strength during carton compression.
Call to Action
Engage our packaging engineering team to design a cartoning solution tailored to your box dimensions, structural strength requirements, and line speed.
